Elevate Your Energy Storage Solutions with CURENTA's High Voltage LiFePO4 Battery
CURENTA's High Voltage LiFePO4 Battery is a game-changer in the world of energy storage systems, offering unparalleled performance and versatility. With a wide voltage range of 48V~512V and a stackable design, this battery opens up endless possibilities for powering your solar home and beyond. Let's dive into the key selling points that make this battery an indispensable component of any advanced energy storage system:
**High Voltage Capability**
Designed to handle high voltage requirements with ease, the CURENTA High Voltage LiFePO4 Battery comes in a 48V configuration with a capacity of 50Ah, equivalent to 2.5KWh of energy storage. This high voltage capability makes it suitable for a wide range of applications, from powering heavy-duty industrial equipment to providing backup power for residential homes.

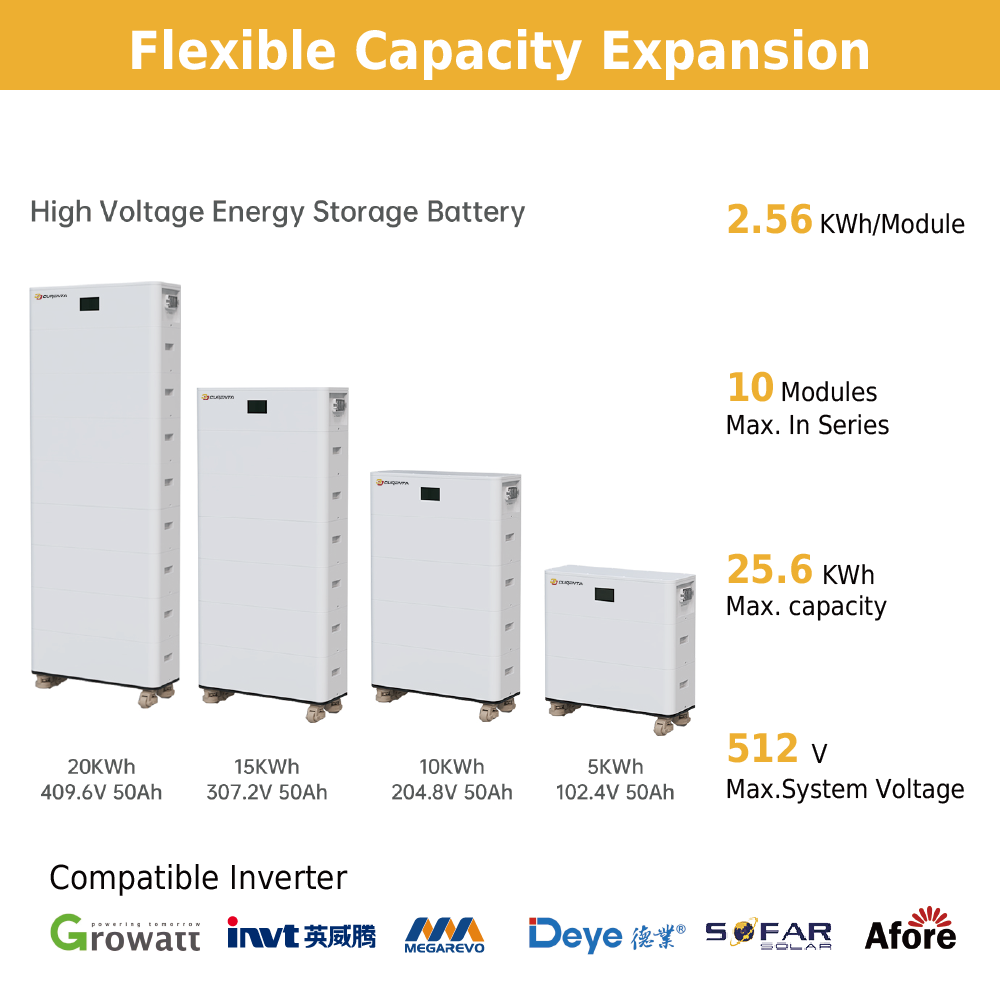

**Stackable Design**
One of the standout features of this battery is its stackable module design, which allows you to configure multiple batteries to meet your specific energy needs. Whether you need a modest amount of storage or a substantial power reserve, the modular design offers flexibility and scalability. This feature also facilitates easy maintenance and replacement of individual modules without compromising the entire system.
**Longevity and Efficiency**
Built on the proven lithium iron phosphate (LiFePO4) chemistry, this battery offers an exceptional lifespan with minimal degradation over thousands of charge cycles. The efficient energy conversion rates mean that you'll get the most out of every charge, making it an economical choice for long-term energy storage solutions.
**Integrated Safety Features**
Safety is a top priority, and this battery comes equipped with multiple safety features to protect against overcharging, overheating, and short circuits. These integrated safeguards ensure that your energy storage system operates smoothly and safely, giving you peace of mind.
**Environmentally Friendly**
In addition to being highly efficient, LiFePO4 batteries are also environmentally friendly, containing no harmful metals like lead or cadmium. This makes them a sustainable choice for your solar home or other renewable energy projects, contributing to a greener planet.
**Wide Range of Applications**
While being an ideal solution for solar homes, the CURENTA High Voltage LiFePO4 Battery is also versatile enough to power a variety of applications. From electric vehicles to remote cabins, RVs, and backup power systems, this battery provides a reliable and powerful source of energy.
**Invest in the Future of Energy Storage**
Don't settle for outdated energy storage solutions when you can invest in the future with CURENTA's High Voltage LiFePO4 Battery. With its high voltage capability, stackable design, longevity, and safety features, it's the perfect choice for those who demand reliability, efficiency, and sustainability from their energy storage systems. Step into the future of energy independence and enjoy the benefits of a truly superior battery technology.
Leistung
|
|||||||||

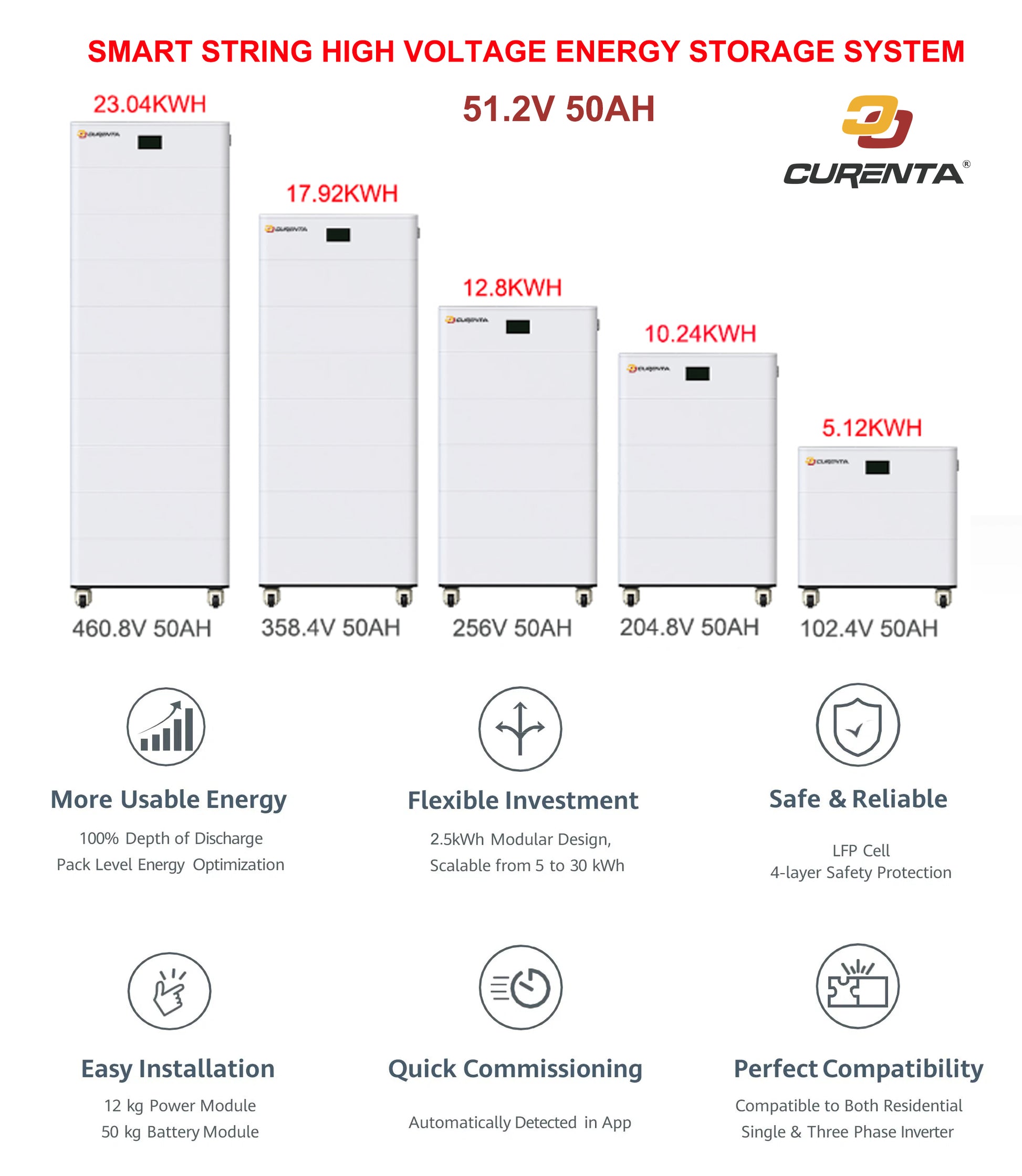

Modell | CUR10K50H | CUR12K50H | CUR15K50H | ||||||
Anzahl der Batteriemodule | 4 | 5 | 6 | ||||||
Nominale Energie | 10,24 kWh | 12,80 kWh | 15,36 kWh | ||||||
Nennspannung | 204,8 V | 256 V | 307,2 V | ||||||
Betriebsspannungsbereich | 160,0-233,6 V | 200,0 bis 292,0 V | 240–350,4 V | ||||||
Abmessungen (L*B*H) | 650*225*921 mm | 650*225*1074 mm | 650*225*1227 mm | ||||||
Gewicht | 123 kg | 149,76 kg | 176,52 kg | ||||||
Modell | CUR17K50H | CUR20K50H | CUR23K50H | ||||||
Anzahl der Batteriemodule | 7 | 8 | 9 | ||||||
Nominale Energie | 17,92 kWh | 20,48 kWh | 23,04 kWh | ||||||
Nennspannung | 358,4 V | 409,6 V | 460,8 V | ||||||
Betriebsspannungsbereich | 280,0-408,8 V | 320,0-467,2 V | 260,0-525,6 V | ||||||
Abmessungen (L*B*H) | 650*225*1380 mm | 650*225*1533 mm | 650*225*1686 mm | ||||||
Gewicht | 203,28 kg | 230,04 kg | 256,8 kg | ||||||
Allgemein | |||||||||
Akku-Typ | Lithiumeisenphosphat (LiFePO4) | ||||||||
Empfohlener Ladestrom | 10 A bis 25 A (0,2 C bis 0,5 C) | ||||||||
Max. Ladestrom | 50A | ||||||||
Max. Kon. Entladestrom | 50A | ||||||||
Spitzenentladestrom | 100 A (10 s) | ||||||||
IP-Schutzart | IP65 | ||||||||
Lärm | <50 dB | ||||||||
Betriebstemperaturbereich | Laden: 0–55 °C / Entladen: -20–60 °C / Lagerung: 0–45 °C | ||||||||
Lebensdauer | ≥6000 Mal [Standardentladung (0,2C₅) nach Standardladung (0,2C₅)] |
||||||||
Batteriemodul | |||||||||
Modul | CUR512050HV | ||||||||
Nennspannung | 51,2 V | ||||||||
Nominale Kapazität | 50 Ah | ||||||||
Nennenergie | 2,56 kWh | ||||||||
Abmessungen (L*B*H) | 650*225*173 mm | ||||||||
Gewicht | 26,76 kg | ||||||||
Batterie-Steuergerät | |||||||||
Kommunikation | DÜRFEN | ||||||||
Anzeige | LCD Bildschirm | ||||||||
Abmessungen (L*B*H) | 650 x 225 x 203 mm | ||||||||
Gewicht | 9,62 kg | ||||||||
Base | |||||||||
Basistyp | Abnehmbarer Sockel | ||||||||
Abmessungen (L*B*H) | 650 x 225 x 125 mm | ||||||||
Gewicht | 6,32 kg |
