Hybrid Inverter Single Phase 5000W 6000W 5KW 6KW IP65 SRNE HESP4850S100-H HESP4860S100-H Compatible with 48V CURENTA Storage Batteries

Hybrid Inverter Single Phase 5000W 6000W 5KW 6KW IP65 SRNE HESP4850S100-H HESP4860S100-H Compatible with 48V CURENTA Storage Batteries

  Effciency

Advanced MPPT with up to 99.9% effciency

Up to 22A*2 PV input current

  Reliable

Output high-quality pure sine wave AC power

With IP65 protection degree User-Friendly With software and hardware security protection Multiple safety approvals

  Safety

Industrial design with a modern aesthetic look

Easy to install and simple to use

  All-in-One

Up to 200A charging current

Supports Li-ion batteryBMS communication

  Intelligent

Exclusive Li-ion battery BMS dual activation

Time-slot function to save cost with peak-valley

€887,36 EUR
€887,36 EUR
Sale Sold out
Shipping calculated at checkout.
Model
  • Fast Shipping
  • 5-Year Warranty
  • Local Service

  • 5-Year Product Warranty and Lifetime Technical Support

  • Shipping from CZ Warehouse

  • Shipping time:Shipping out within 3 business days from CZ.

Runtime Calculation

Please enter the power value.

Safety Certifications

CE Certification RoHS Certification UN38.3 Certification UKCA.3 Certification MSDS Certification
View full details

  • 200%

    2-3X THE POWER AS A LEAD ACID BATTERY

  • 1/3

    1/3 THE WEIGHT FOR EQUAL USABLE POWER

  • 5X

    CHARGES UP TO 5X FASTER

  • 95%

    100% DEPTH SOC & DOD

  • 5-Year

    5-YEAR NEW REPLACEMENT WARRANTY

HESP series Solar Storage Inverter

 Wi-Fi Module Accessories



MODEL HESP4840S100-H HESP4846S100-H HESP4850S100-H
HESP4855S100-H		 HESP4860S100-H CAN BE
SET
OFF-GRID OUTPUT
Rated Output Power 4,000W 4,600W 5,500W 6,000W
Peak Power 8,000VA 9,200VA 11,000VA 12,000VA
Rated Output Voltage 230Vac (200/208/220/240Vac settable) ✓
Load Capacity of Motors 3HP 4HP
Rated Frequency 50/60Hz ✓
Switch Time 10ms（typical）
ON-GRID OUTPUT
Rated Output Power 4,000W 4,600W 5,500W 6,000W
Max. Apparent Power 4,000VA 4,600VA 5,500VA 6,000VA
Max. Output Current 17.4A 20A 24A 26A
THDI < 3%
Power Factor 0.8 leading to 0.8 lagging
Rated Voltage 230Vac
Frequency 50Hz/60Hz
BATTERY
Battery Type Lead-acid / Li-ion / User Defined ✓
Rated Battery Input Voltage 48V(minimum starting voltage 44V)
Battery Voltage Range 40～60Vdc ✓
Max. PV Charging Current 100A ✓
Max.Mains/Generator Charging Current 60A ✓
PV INPUT
Num. of MPPT Trackers 2
Max.PV Array Power 3,000W+3,000W 3,500W+3,500W 4,000W+4,000W 4,500W+4,500W
Max.Input Current 16A+16A
Max.Voltage of Open Circuit 500Vdc+500Vdc
MPPT Voltage Range 120~450Vdc
MAINS/GENERATOR INPUT
Input Voltage Range UPS mode：170～280Vac；APL mode：90～280Vac ✓
Input Frequency Range 50/60Hz
Bypass Overload Current 40A
EFFICIENCY
MPPT Tracking Efficiency 99.9%
Max. Mains Charging Efficiency 92%
GENERAL
Num. of Parallel 1~6 units

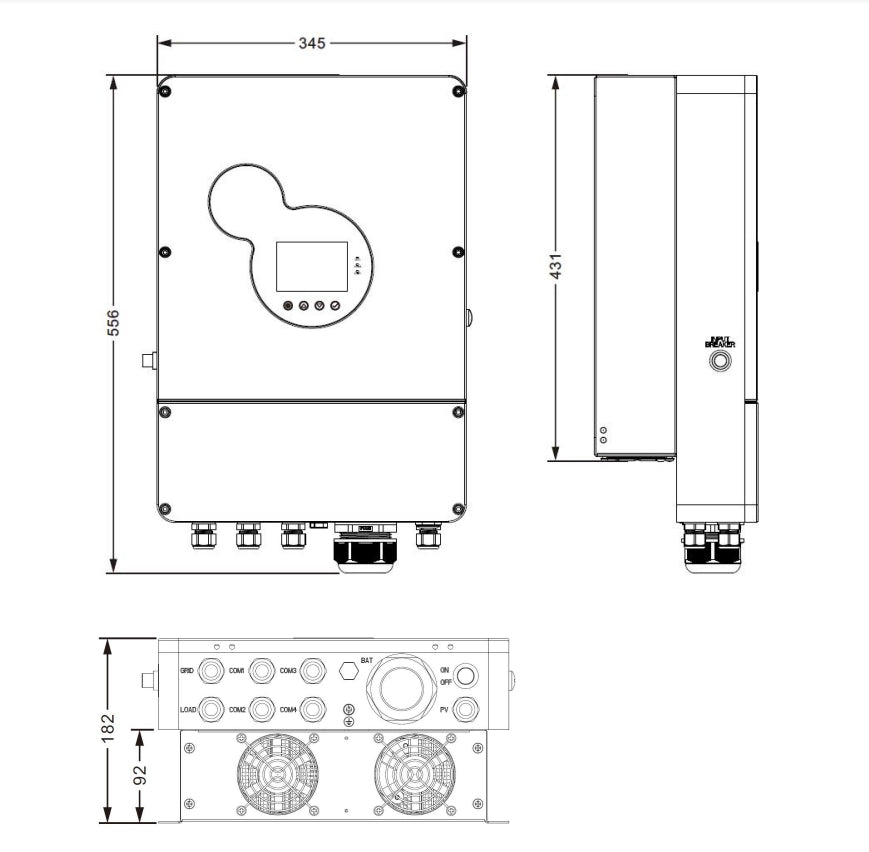

Dimensions 556*345*182mm (1.82*1.13*0.60ft)
Weight 20kg（44.1lb）
Protection Degree IP65
Operating Temperature Range -25~60℃ (-13°F~140°F)
Noise ≤60dB
Humidity range 0% ~ 100%
Cooling Method Forced air cooling, variable speed of fan
Warranty 5 years
COMMUNICATION
Embedded Interfaces RS485 / CAN / USB / Dry contact ✓
External Modules（Optional） Wi-Fi / GPRS ✓
CERTIFICATION
Safety CE(IEC 62109-1/2)、CEI0-21、VDE-AR-N-4105、EN50549-1
EMC EN61000、FCC-SODC
