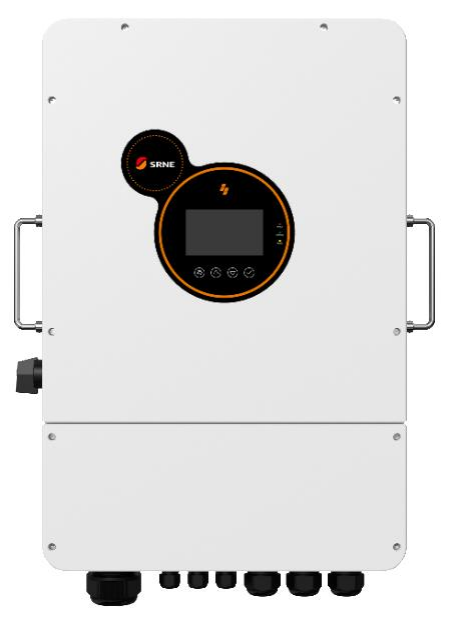

Hybrid Inverter Three-Phase Hybrid Solar Storage Inverter 12000W 12KW IP65 SRNE HESP48120SH3 Compatible with 48V CURENTA Storage Batteries
Hybrid Inverter Three-Phase Hybrid Solar Storage Inverter 12000W 12KW IP65 SRNE HESP48120SH3 Compatible with 48V CURENTA Storage Batteries
Effciency
Advanced MPPT with up to 99.9% effciency
Up to 22A*2 PV input current
Reliable
Output high-quality pure sine wave AC power
With IP65 protection degree User-Friendly With software and hardware security protection Multiple safety approvals
Safety
Industrial design with a modern aesthetic look
Easy to install and simple to use
All-in-One
Up to 200A charging current
Supports Li-ion batteryBMS communication
Intelligent
Exclusive Li-ion battery BMS dual activation
Time-slot function to save cost with peak-valley
Normaler Preis
€1.499,00 EUR
Normaler Preis
Verkaufspreis
€1.499,00 EUR
Stückpreis
pro
Versand wird beim Checkout berechnet
Verfügbarkeit für Abholungen konnte nicht geladen werden
- Fast Shipping
- 5-Year Warranty
- Local Service
Runtime Calculation
Please enter the power value.
Safety Certifications
-
200%
2-3X THE POWER AS A LEAD ACID BATTERY
-
1/3
1/3 THE WEIGHT FOR EQUAL USABLE POWER
-
5X
CHARGES UP TO 5X FASTER
-
95%
100% DEPTH SOC & DOD
-
5-Year
5-YEAR NEW REPLACEMENT WARRANTY
HESP Series Solar Storage Inverter

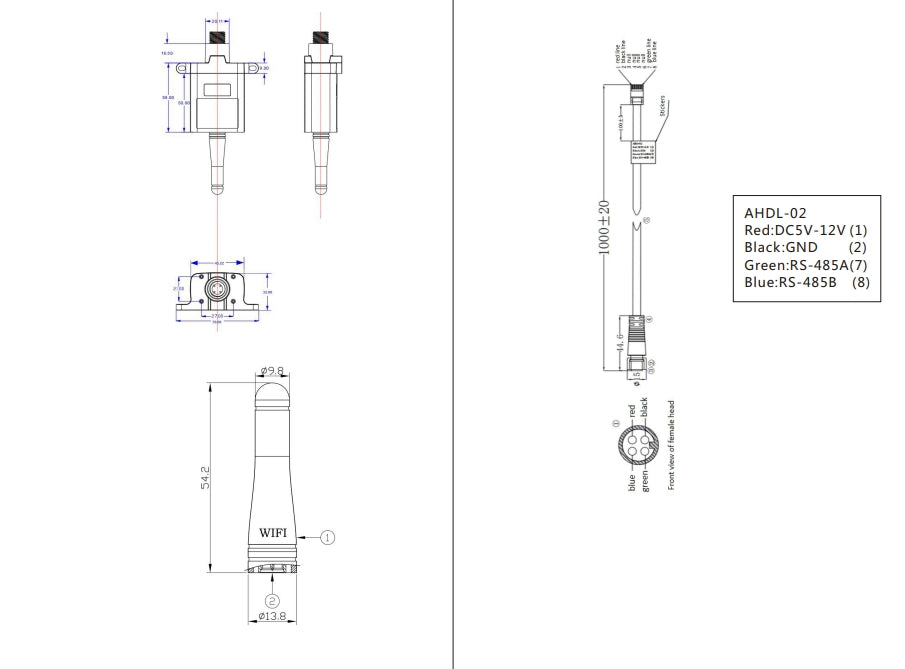

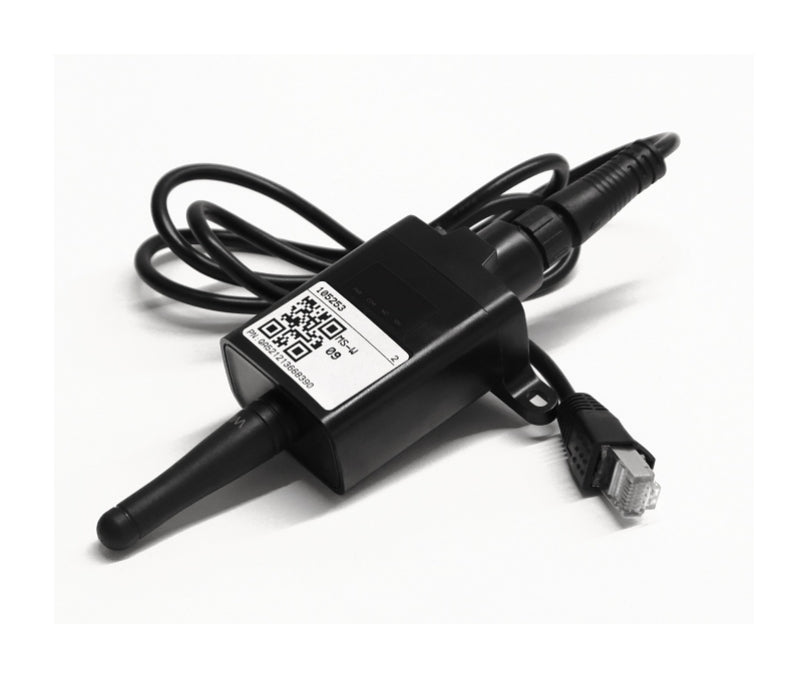

Wi-Fi Module Accessories
| MODEL | HESP4880SH3 | HESP48100SH3 | HESP48120SH3 |
| AC OUTPUT | |||
| Rated Output Power | 8,000W | 10,000W | 12,000W |
| Max. Output Power | 16,000VA | 20,000VA | 24,000VA |
| Rated Output Voltage | 230/400 Vac（three-Phase） | ||
| Load Motor Capacity | 5HP | 6HP | |
| Rated Frequency | 50/60Hz ±0.3 | ||
| Switch Time | 10ms（typical） | ||
| BATTERY | |||
| Battery Type | Li-ion / Lead-Acid / User Defined | ||
| Rated Battery Voltage | 48V | ||
| Battery Volatge Range | 40～60Vdc | ||
| Max. Grid/Generator Charging Current | 100A | 120A | 120A |
| Max. Hybrid Charging Current | 180A | 220A | 260A |
| SOLAR INPUT | |||
| No. Of MPPT | 2 | ||
| Max. Input Power | 6,000W+6,000W | 7,500W+7,500W | 9,000W+9,000W |
| Max. Input Current | 22A+22A | ||
| Max. Open Circuit Voltage | 800Vdc+800Vdc | ||
| MPPT Voltage Range | 200-650Vdc/200-650Vdc | ||
| GRID/GENERATOR INPUT | |||
| Input Voltage Range | Phase voltage 170~280V, Line voltage 305~485V | ||
| Input Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 23.2A | 29A | 35A |
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max. Efficiency | ≥92% | ||
| European Efficiency | 97.2% | 97.5% 9 | |
| GENERAL DATA | |||
| Parallel Capacity | 1～6 Units | ||
| Dimension | 670*440*240mm | Humidity | 0～100% |
| Weight | 39kg | Cooling Method | Heat sink + intelligent fan cooling |
| Protection Degree | IP65 | Warranty | 10 years |
| Temperature | -10~55℃, >45℃ Derate | Communication | RS485/CAN/USB/Dry Contact |
| External Module（Optional） | Wi-Fi/GPRS | Topology | Transformerless |
| Certificate | IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3, FCC 15 class B, RoHS | ||
